Transmission Support Insulator - Anti-Roll FWD: Installation

1. 1.

   Clean the roll restrictor bolts using a wire brush and apply new Threadlock and Sealer to the threads.

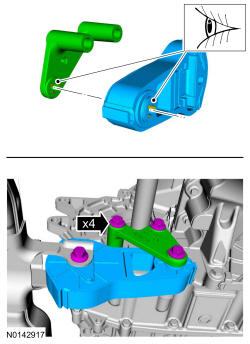

NOTE: The bracket has keyed tabs to orientate the roll restrictor.
1. 2.
   Position the roll restrictor bracket and the rear roll restrictor in place, align the keyed tabs and install the bolts.
   • Tighten to 103 Nm (76 lb-ft).

Courtesy of FORD MOTOR COMPANY
