Transmission Support Insulator - Anti-Roll, 3.5L GTDI: Installation

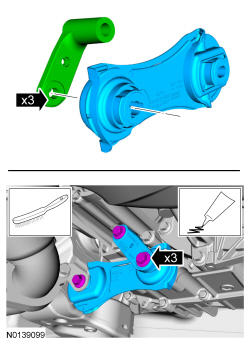

Rear roll restrictor

NOTE: The bracket has keyed tabs to orient the roll restrictor.
1. 1.
   Wire brush. Apply the substance from the specified tube. Material: Threadlock and Sealer TA-25.
   • Tighten to 103 Nm (76 lb-ft).

Courtesy of FORD MOTOR COMPANY

Front roll restrictor

1. 2.

   Wire brush. Apply the substance from the specified tube. Material: Threadlock and Sealer TA-25.
   • Tighten the 2 bracket-to-transmission bolts to 90 Nm (66 lb-ft).
   • Tighten the through bolt to 103 Nm (76 lb-ft).

Courtesy of FORD MOTOR COMPANY

1. 3.

   If equipped.
   • Tighten to 70 Nm (52 lb-in).

Courtesy of FORD MOTOR COMPANY
