Torque Converter Housing: Assembly

NOTE: Temporarily install the differential and the transfer shaft in the transmission case.
1. 1.


Courtesy of FORD MOTOR COMPANY

1. 2.

   Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591 (307-591/1 and 307-591/2)

Courtesy of FORD MOTOR COMPANY

1. 3.

   Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (studs)

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that the silicone has been cleaned off the machined surface of the transmission case and the torque converter housing before installing the Differential/Transfer Gear Bearing Shim Gauge 307-591/3 (4 spacers) or the preload measurement may be inaccurate.
1. 4.
   Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (4 spacers)

Courtesy of FORD MOTOR COMPANY

1. 5.



Courtesy of FORD MOTOR COMPANY

1. 6.

   Special Tools(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (remaining 4 spacers, bolts and washers)
   • Tighten to 24 Nm (18 lb-ft).

Courtesy of FORD MOTOR COMPANY

1. 7.

   Special Tools(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (4 nuts and washers)
   • Tighten to 24 Nm (18 lb-ft).

Courtesy of FORD MOTOR COMPANY

1. 8.

   Rotate the transfer shaft and the differential several times to seat the bearing cups.

Courtesy of FORD MOTOR COMPANY

1. 9.

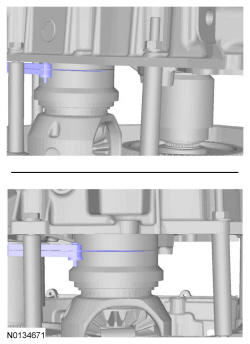

   Measure and record the smallest and largest preload gap on the Shim Gauge, Differential/Transfer Gear Bearing 307-591/1. Average the 2 measurements to get the thickness of the differential bearing preload shim. Refer to Specifications  for the differential bearing preload shim part number. General Equipment: Feeler Gauge.

Courtesy of FORD MOTOR COMPANY

1. 10.

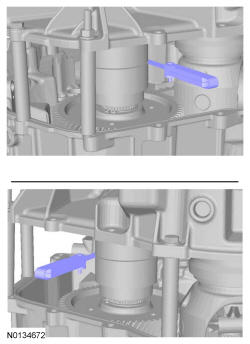

   Measure and record the smallest and largest preload gap on Shim Gauge, Differential/Transfer Gear Bearing 307-591/2. Average the 2 measurements to get the thickness of the transfer shaft bearing preload shim. Refer to Specifications  for the transfer gear bearing preload shim part number. General Equipment: Feeler Gauge.

Courtesy of FORD MOTOR COMPANY

1. 11.

   Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (4 nuts, bolts and spacers and 8 washers)

Courtesy of FORD MOTOR COMPANY

1. 12.

   Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (4 spacers)

Courtesy of FORD MOTOR COMPANY

1. 13.

   Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/3 (4 studs)

Courtesy of FORD MOTOR COMPANY

1. 14.

   Special Tool(s): Shim Gauge, Differential/Transfer Gear Bearing 307-591/1 and 307-591/2

Courtesy of FORD MOTOR COMPANY

1. 15.



Courtesy of FORD MOTOR COMPANY

1. 16.

   Assemble the torque converter housing. Refer to Torque Converter Housing .

1. 17.

   Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583

Courtesy of FORD MOTOR COMPANY

NOTE: Support the torque converter housing using blocks of wood, or damage to the torque converter housing may occur.
1. 18.
   Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583

Courtesy of FORD MOTOR COMPANY

1. 19.

   Inspect the transfer shaft fluid dam to be sure it is seated evenly into the torque converter housing. Visual check.

Courtesy of FORD MOTOR COMPANY

1. 20.



Courtesy of FORD MOTOR COMPANY

1. 21.

   Special Tool(s): Bearing Cup Installer 307-576 General Equipment: Shop Press

Courtesy of FORD MOTOR COMPANY

1. 22.



Courtesy of FORD MOTOR COMPANY

1. 23.

   Special Tool(s): Bearing Cup Installer 307-576

Courtesy of FORD MOTOR COMPANY

1. 24.

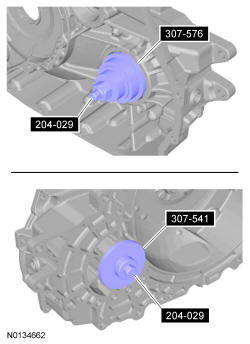

   Special Tool(s): Bearing Cup Installer 307-576, Installer, Transfer Gear Bearing 307-541, Drawbar 204-029

Courtesy of FORD MOTOR COMPANY
