Differential Gear Assembly: Disassembly

  1. 1.

    Inspect the differential bearings for damage or excessive wear. Install new bearings if necessary.
    NOTE: AWD shown, FWD similar
G00555429Courtesy of FORD MOTOR COMPANY

  1. 2.

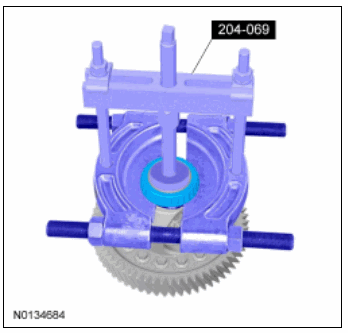

    Special Tool(s): Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C), Puller, Bearing 205-D064 (D84L-1123-A), Step Plate 205-D019 (D80L-630-8) (AWD) or Step Plate 205-D015 (D80L-630-4) (FWD).
G00555430Courtesy of FORD MOTOR COMPANY

  1. 3.

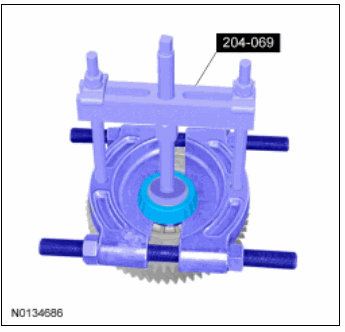

    Special Tool(s): Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C), Puller, Bearing 205-D064 (D84L-1123-A), Step Plate 205-D019 (D80L-630-8).
    NOTE: AWD shown, FWD similar.
G00561891Courtesy of FORD MOTOR COMPANY

  1. 4.

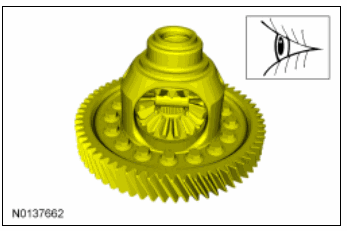

    Check the differential assembly and the ring gear for damage. Visual check.
    NOTE: If replacing the ring gear, it is also necessary to replace the transfer shaft.
G00561892Courtesy of FORD MOTOR COMPANY

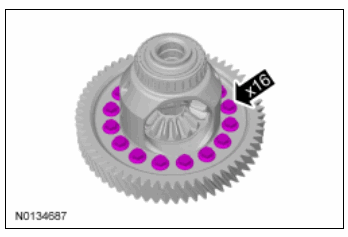

  1. 5.

G00561893Courtesy of FORD MOTOR COMPANY

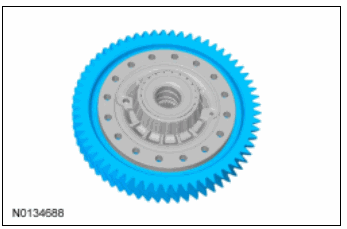

  1. 6.

G00561894Courtesy of FORD MOTOR COMPANY
