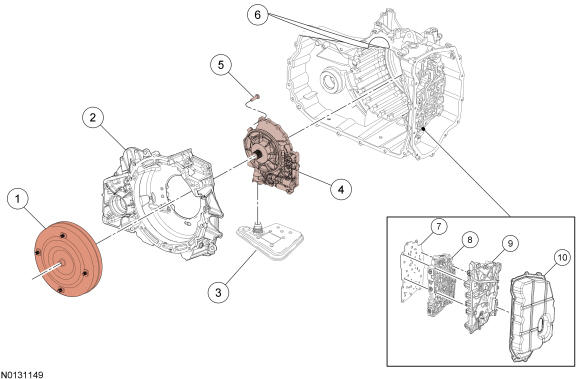

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Torque converter |
| 2 |
Torque converter housing |
| 3 |
Transmission fluid filter |
| 4 |
Pump assembly |
| 5 |
Pump-to-torque converter housing bolt |
| 6 |
Transmission case |
| 7 |
Main control-to-transmission case seperator plate |
| 8 |
Valve body |
| 9 |
Solenoid body assembly |
| 10 |
Main control cover |
