Main Control Cover: Notes

WARNING: This page is about a different variant/trim than selected.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .
Material

Item Specification
Ultra Silicone Sealant TA-29 -

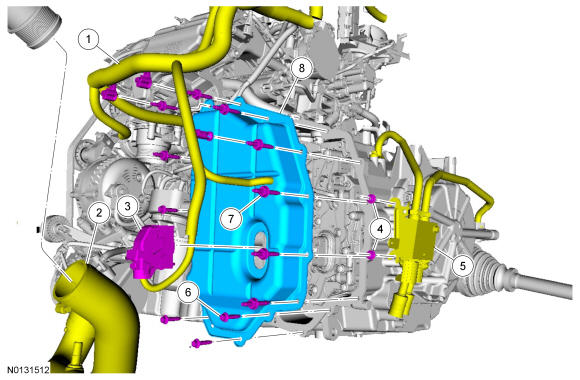

Exploded View

GFD35714Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 14B060 Wiring harness
2 6K813 CAC outlet hose
3 - Transmission electrical connector (part of 14B060)
4 W520101 Transmission fluid thermal bypass valve nuts
5 7H420 Transmission fluid thermal bypass valve
6 W500214 Main control cover bolt
7 W714629 Main control cover studbolt
8 7G004 Main control cover
