Solenoid Body Leadframe: Removal

WARNING: This page is about a different variant/trim than selected.

1.

Remove the main control cover. Refer to Main Control Cover .

2.

Disconnect the TR sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

Disconnect the OSS sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

Remove the main control-to-cover seal.

Courtesy of FORD MOTOR COMPANY

NOTE: Be careful not to bend or twist the leadframe or the solenoid terminals when removing the leadframe or damage can occur to the leadframe or the solenoids.

5.

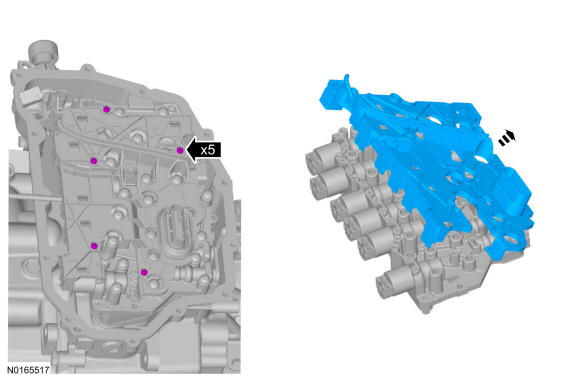

Remove the screws and the leadframe from the solenoids by lifting it straight up evenly.

Courtesy of FORD MOTOR COMPANY
