Solenoid Body Leadframe: Installation
WARNING: This page is about a different variant/trim than selected.
- 1.

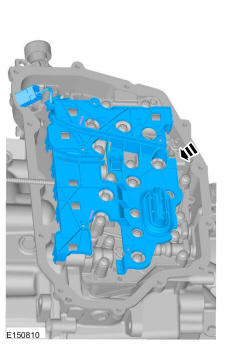

Install 307-636 in the solenoid body to align the leadframe for installation.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

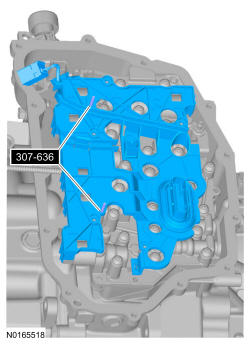

Position the leadframe on the 307-636 and carefully install the leadframe by pushing straight down into the solenoids.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Install the leadframe screws.
- Tighten to 3.5 Nm (31 lb.in)
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Connect the OSS sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Connect the TR sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Install the main control-to-cover seal.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Install the main control cover. Refer to Main Control Cover .
