Transmission Control Module (TCM): Notes

WARNING: This page is about a different variant/trim than selected.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

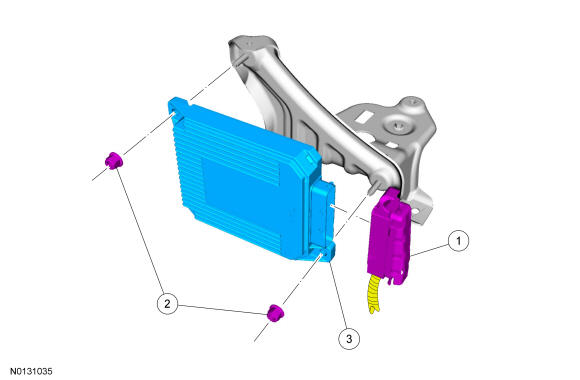

Exploded View

GFD35768Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 14A464 TCM electrical connector
2 W202212 TCM nuts
2 12B565 TCM
