Transmission Support Insulator: Removal

WARNING: This page is about a different variant/trim than selected.

  1. 1.

    Remove the battery tray. REFER to Battery, Mounting and Cables .
    NOTE: Keep the TCM electrical connector straight when disconnecting it or damage to the connector terminals can occur.

  1. 2.
    Slide the lock tab up and disconnect the TCM electrical connector.
GFD35769Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the wiring and the vacuum retainers from the TCM bracket.
GFD34112Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove the transmission support insulator nuts and the TCM bracket bolt and remove the TCM support bracket.
GFD34113Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the cowl panel. REFER to Front End Body Panels .

  1. 6.

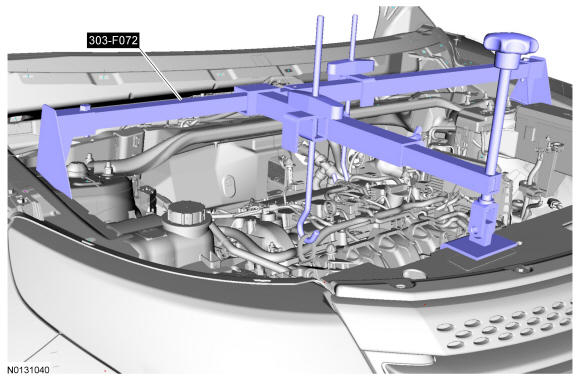

    Install 303-F072 and support the engine and transmission.
GFD35739Courtesy of FORD MOTOR COMPANY

  1. 7.

    Remove the transmission support insulator nuts, the transmission support insulator bolt and the transmission support insulator.
GFD35780Courtesy of FORD MOTOR COMPANY
