Differential Gear Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

  1. 1.

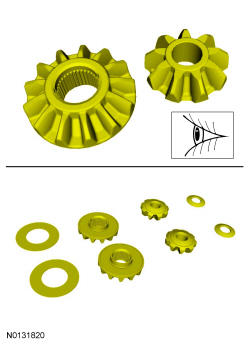

    Check for damage or excessive wear. Visual check.
GFD36081Courtesy of FORD MOTOR COMPANY

  1. 2.

    Check for damage or excessive wear. Visual check.
GFD36082Courtesy of FORD MOTOR COMPANY

  1. 3.

    Check that bearings spin freely and do not move back and forth or side to side excessively. Check for damage or excessive wear. Visual check.
GFD36083Courtesy of FORD MOTOR COMPANY
    NOTE: Do not mix up the washers from the side or spider gears that they were originally assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.

  1. 4.
GFD36084Courtesy of FORD MOTOR COMPANY

  1. 5.

GFD36085Courtesy of FORD MOTOR COMPANY

  1. 6.

GFD36086Courtesy of FORD MOTOR COMPANY

  1. 7.

    Align the roll pin holes. Visual check.
GFD36087Courtesy of FORD MOTOR COMPANY

  1. 8.

    New roll pin. Pin punch.
GFD36088Courtesy of FORD MOTOR COMPANY
