Selector Lever Cable - 6F35: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

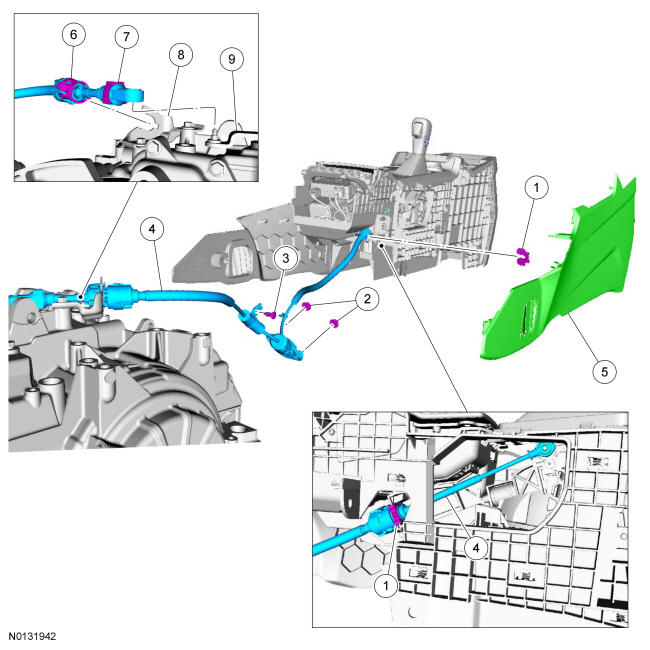

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 7H181 | Selector lever cable retaining clip | - | - | - |
| 2 | W707944 | Selector lever cable grommet nuts | 7 Nm (62 lb-in) | - | - |
| 3 | part of 7E395 | Selector lever cable routing retainer | - | - | - |
| 4 | 7E395 | Selector lever cable | - | - | - |
| 5 | 7804608 | Lower floor console side trim panel | - | - | - |
| 6 | part of 7E395 | Selector lever cable retaining clip | - | - | - |
| 7 | part of 7E395 | Adjuster locking tab | - | - | - |
| 8 | 7B229 | Selector lever cable bracket | - | - | - |
| 9 | 7A256 | Manual control lever | - | - | - |
