Input Shaft Seal: Installation

1.

Clean the PTU input shaft opening.

GFD36702

Courtesy of FORD MOTOR COMPANY

2.

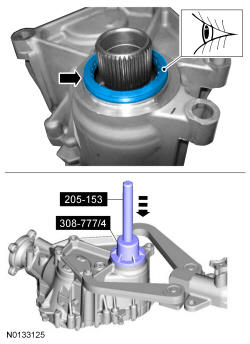

Position the inner seal above the PTU input shaft opening with the spring facing toward the PTU. Using 308-777 /4 and 205-153 T80T-4000-W, install the seal.

GFD36703

Courtesy of FORD MOTOR COMPANY

3.

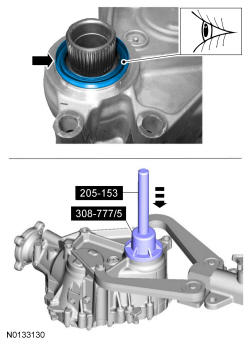

Position the outer seal above the PTU input shaft opening with the spring facing away from the PTU. Using 308-777 /5 and 205-153 T80T-4000-W, install the seal.

GFD36704

Courtesy of FORD MOTOR COMPANY

4.

Install the new compression seal.

GFD36694

Courtesy of FORD MOTOR COMPANY

5.

Install the PTU. Refer to Power Transfer Unit (PTU) .

6.

Fill the PTU as necessary. Refer to Power Transfer Unit (PTU) Draining and Filling .
