Power Transfer Unit (PTU): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC | MERCON® LV |
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) | WSL-M2C192-A and GL-5 |
| Motorcraft® Silicone Gasket and Sealant TA-30 | WSE-M4G323-A4 |

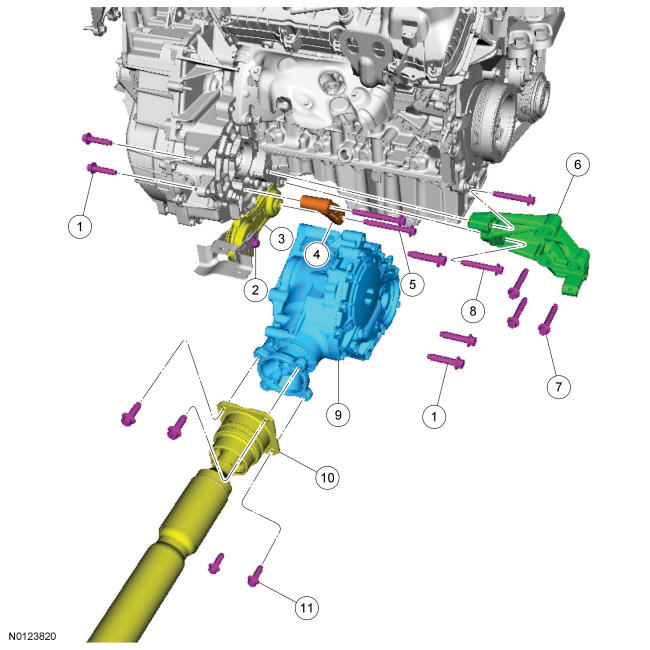

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W500741 | PTU bolt (5 required) | - | - | 90 Nm (66 lb-ft) |
| 2 | W712850 | Rear engine roll restrictor bolt | - | - | 90 Nm (66 lb-ft) |
| 3 | 6068 | Engine roll restrictor | - | - | - |
| 4 | 6E042 | Engine roll restrictor bracket | - | - | - |
| 5 | W715378 | Engine roll restrictor-to-transaxle bolt (2 required) | - | - | 103 Nm (76 lb-ft) |
| 6 | 7A444 | PTU support bracket | - | - | - |
| 7 | W500324 | PTU support bracket-to-engine bolt (3 required) | - | - | 48 Nm (35 lb-ft) |
| 8 | W500324 | PTU support bracket-to-Power Transfer Unit (PTU) bolt (2 required) | - | - | 48 Nm (35 lb-ft) |
| 9 | 7251 | PTU | - | Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant | - |
| 10 | 4R602 | Driveshaft | - | - | - |
| 11 | W711918 | Driveshaft-to-output flange bolt (4 required) | - | - | 70 Nm (52 lb-ft) |
