Transfer Case Cooler: Removal

1.

Remove the RH catalytic converter. Refer to REFER to Exhaust System - 3.5L GTDI.

2.

Remove the drain plug and drain the PTU.
- Torque to 20 Nm (177 lb-in).

GFD36671

Courtesy of FORD MOTOR COMPANY

3.

GFD36672

Courtesy of FORD MOTOR COMPANY

4.

GFD36673

Courtesy of FORD MOTOR COMPANY

5.

GFD36674

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Clean the area around the PTU temperature sensor before removing.

NOTE: The PTU temperature sensor can be removed using a 15mm crows foot and extension.

GFD36677

Courtesy of FORD MOTOR COMPANY

7.

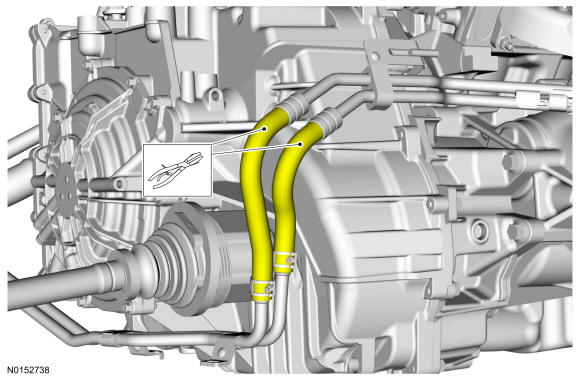

GFD36745

Courtesy of FORD MOTOR COMPANY

8.

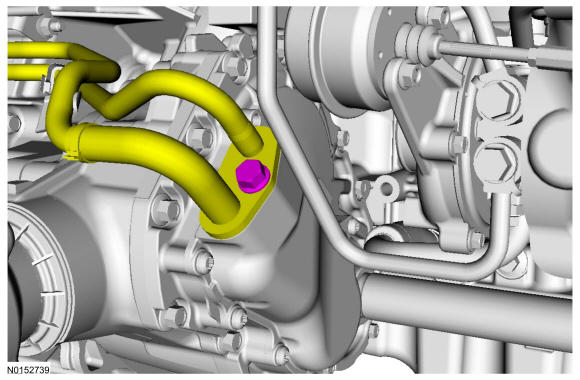

GFD36746

Courtesy of FORD MOTOR COMPANY

9.

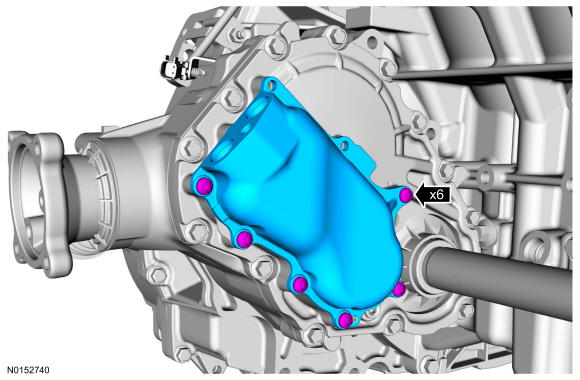

GFD36747

Courtesy of FORD MOTOR COMPANY

10.

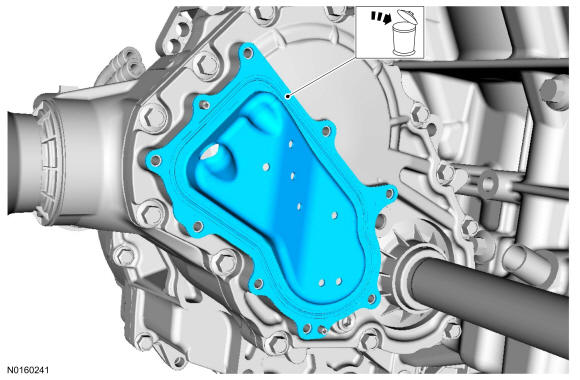

GFD36748

Courtesy of FORD MOTOR COMPANY
