Hydraulic Control Unit (HCU): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Motorcraft ® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20 | WSS-M6C65-A2 |

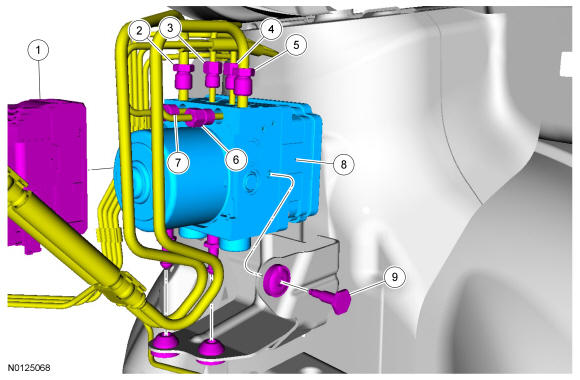

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Anti-Lock Brake System (ABS) module electrical connector (part of 14290) | - | - | - |
| 2 | - | Master cylinder primary brake tube-to-Hydraulic Control Unit (HCU) fitting (part of 2C360) | 40 Nm (30 lb-ft) | - | - |
| 3 | - | LH front brake tube-to-Hydraulic Control Unit (HCU) fitting (part of 2C296) | 23 Nm (17 lb-ft) | - | - |
| 4 | - | RH front brake tube-to-Hydraulic Control Unit (HCU) fitting (part of 2C296) | 23 Nm (17 lb-ft) | - | - |
| 5 | - | Master cylinder secondary brake tube-to-Hydraulic Control Unit (HCU) fitting (part of 2C360) | 40 Nm (30 lb-ft) | - | - |
| 6 | - | LH rear brake tube-to-Hydraulic Control Unit (HCU) fitting (part of 2C296) | 23 Nm (17 lb-ft) | - | - |
| 7 | - | RH rear brake tube-to-Hydraulic Control Unit (HCU) fitting (part of 2C296) | 23 Nm (17 lb-ft) | - | - |
| 8 | 2C405 | Hydraulic Control Unit (HCU) (with adaptive cruise control) | - | - | - |
| 8 | 2C215 | Hydraulic Control Unit (HCU) (without adaptive cruise control) | - | - | - |
| 9 | 2M101 | Hydraulic Control Unit (HCU) bracket bolt | 11 Nm (97 lb-in) | - | - |
