Wheel Speed Sensor - Front: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

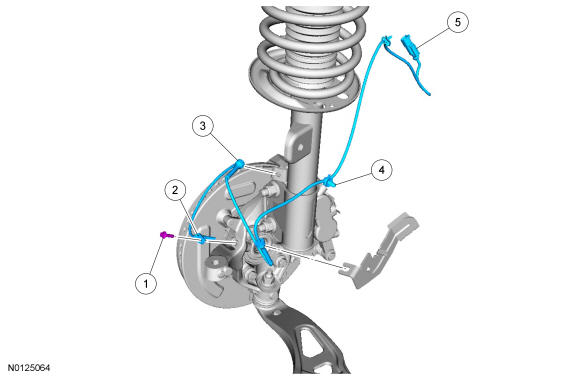

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W505255 | Front wheel speed sensor bolt | 15 Nm (133 lb-in) | - | - |
| 2 | 2C204 | Front wheel speed sensor | - | - | - |
| 3 | - | Grommet (2 required) (part of 2C204) | - | - | - |
| 4 | - | Pin-type retainer (2 required) (part of 2C204) | - | - | - |
| 5 | - | Front wheel speed sensor electrical connector (part of 2C204) | - | - | - |
