Wheel Speed Sensor - Rear: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

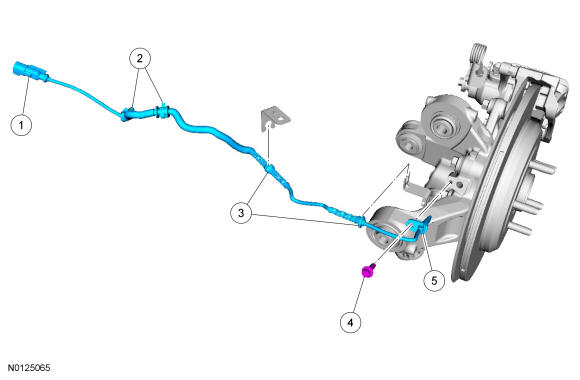

Exploded View

GFD33922Courtesy of FORD MOTOR COMPANY
Item Service Part Number Description Torque Material Name Notes
1 - Rear wheel speed sensor electrical connector (part of 2C190) - - -
2 - Pin-type retainers (2 required) (part of 2C190) - - -
3 - Grommets (2 required) (part of 2C190) - - -
4 W505255 Rear wheel speed sensor bolt 15 Nm (133 lb-in) - -
5 2C190 Rear wheel speed sensor - - -
