Brake Booster: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

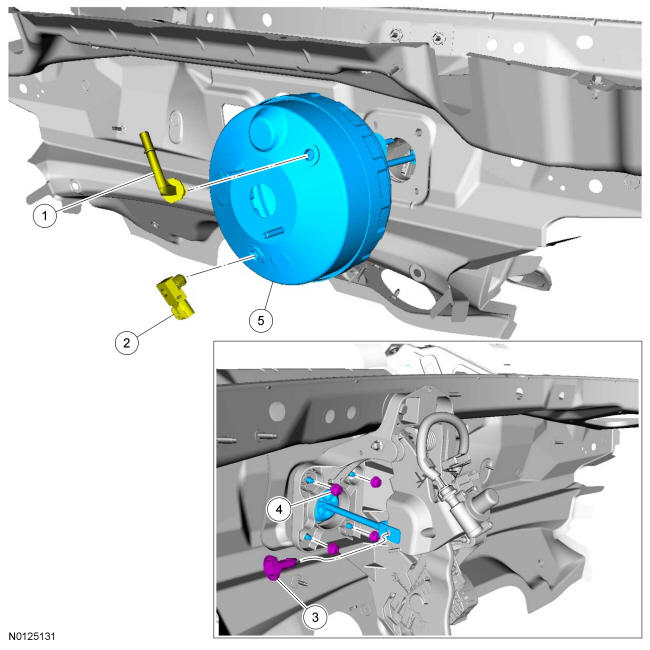

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 9D443A | Brake booster vacuum fitting |
| 2 | 2365 | Brake booster vacuum sensor |
| 3 | 2L523 | Booster rod clevis-locking pin |
| 4 | W520212 | Brake booster nut (4 required) |
| 5 | 2005 | Brake booster |
| Item | Part Number | Description |
|---|---|---|
| 6 | W704790 | Strut upper mount nuts (4 required) |
| 7 | 16A200 | Strut tower brace |
