Cylinder Head - RH: Removal

1. 1.

   Remove the RH camshafts. Refer to Camshaft .

1. 2.

   If equipped, remove the block heater heat shield.

Courtesy of FORD MOTOR COMPANY

1. 3.

   If equipped, disconnect the block heater electrical connector.
   • Remove the block heater wiring harness from the engine.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Disconnect the 2 RH CMP sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Remove the 2 bolts and the 2 CMP sensors.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Remove the bolt and the ground cable from the RH cylinder head.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Remove the LH cylinder block drain plug.
   • Allow coolant to drain from the cylinder block.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Remove the 4 bolts and the RH catalytic converter heat shield.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Remove the 6 nuts and the RH catalytic converter manifold.
   • Discard the nuts and catalytic converter gasket.

Courtesy of FORD MOTOR COMPANY

1. 10.

   Clean and inspect the RH exhaust manifold. REFER to Engine System General Information .

1. 11.

   Remove and discard the 6 RH exhaust manifold studs.

Courtesy of FORD MOTOR COMPANY

1. 12.

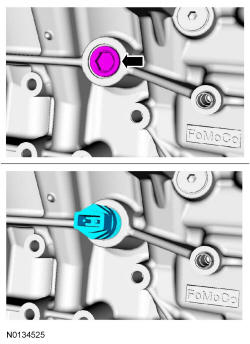

   Remove the RH cylinder block drain plug or, if equipped, the block heater.
   • Allow coolant to drain from the cylinder block.

Courtesy of FORD MOTOR COMPANY

NOTE: Do not use power tools to remove the bolt or damage to the RH primary timing chain guide may occur.
1. 13.
   Remove the bolt and the RH primary timing chain guide.

Courtesy of FORD MOTOR COMPANY

1. 14.

   Remove the 2 bolts and the engine lifting eye.

Courtesy of FORD MOTOR COMPANY

NOTE: Index-mark the location of the bracket on the cylinder head for installation.
1. 15.
   Remove the bolt and the upper intake manifold bracket.

Courtesy of FORD MOTOR COMPANY

1. 16.

   Remove the 2 thermostat housing-to-lower intake manifold bolts.

Courtesy of FORD MOTOR COMPANY

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
1. 17.
   Remove the 10 bolts and the lower intake manifold.
   • Remove and discard the intake manifold and thermostat housing gaskets.
   • Clean and inspect all sealing surfaces.

Courtesy of FORD MOTOR COMPANY

1. 18.

   Disconnect the CHT sensor jumper harness.

Courtesy of FORD MOTOR COMPANY

NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.
1. 19.
   Remove the valve tappets from the cylinder head.

Courtesy of FORD MOTOR COMPANY

1. 20.

   Inspect the valve tappets. REFER to Engine System General Information .

1. 21.

   Remove and discard the M6 bolt.

Courtesy of FORD MOTOR COMPANY

NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
1. 22.
   Remove and discard the 8 bolts from the cylinder head.
   • Remove the cylinder head.
   • Discard the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY

NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.
NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
1. 23.
   Clean the cylinder head-to-cylinder block mating surfaces of both the cylinder heads and the cylinder block in the following sequence.
   • Remove any large deposits of silicone or gasket material with a plastic scraper.
   • Apply silicone gasket remover, following package directions, and allow to set for several minutes.
   • Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
   • Apply metal surface prep, following package directions, to remove any remaining traces of oil or coolant and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.

1. 24.

   Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. REFER to Engine System General Information - Cylinder Head Distortion and REFER to Engine System General Information - Cylinder Block Distortion. .
