Timing Drive Components: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Special Tool(s)
| Tool, Chain Tensioner Hold Down 303-1530 | |
| Camshaft Holding Tools 303-1248 |
Material
| Item | Specification |
| Motorcraft ® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) | WSS-M2C945-A |

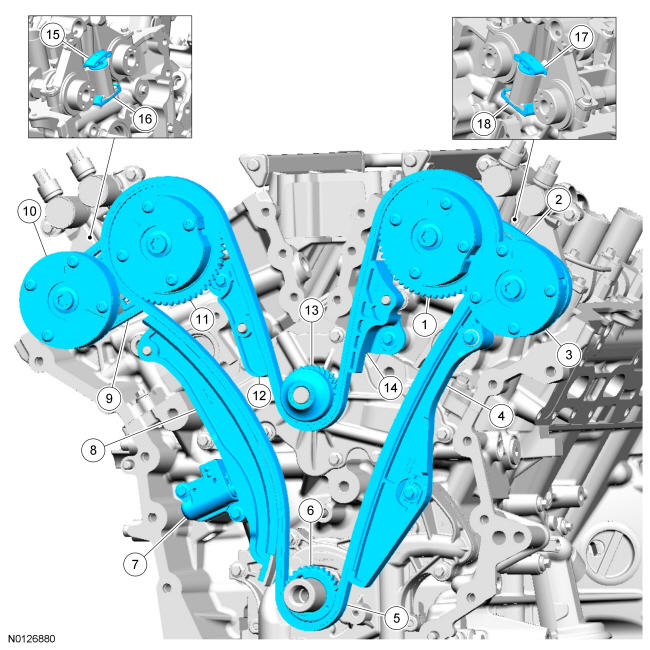

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 6C524 | LH intake VCT assembly |
| 2 | 6268 | LH secondary timing chain |
| 3 | 6C525 | LH exhaust VCT assembly |
| 4 | 6B274 | LH primary timing chain |
| 5 | 6268 | Primary timing chain |
| 6 | 6306 | Crankshaft timing chain sprocket |
| 7 | 6L266 | Primary timing chain tensioner |
| 8 | 6K255 | RH primary timing chain tensioner arm |
| 9 | 6268 | RH secondary timing chain |
| 10 | 6C525 | RH exhaust VCT assembly |
| 11 | 6C524 | RH intake VCT assembly |
| 12 | 6K297 | RH primary timing chain guide |
| 13 | - | Coolant pump gear (part of 8501) |
| 14 | 6K297 | LH primary timing chain guide |
| 15 | 6K254 | RH secondary timing chain tensioner |
| 16 | 6K297 | RH secondary timing chain tensioner shoe |
| 17 | 6K254 | LH secondary timing chain tensioner |
| 18 | 6K297 | LH secondary timing chain tensioner shoe |
