Valve Cover - RH: Installation

    NOTE: Installation of new seals is only required if damaged seals were removed.

  1. 1.
    Using 303-1247/2 and 205-153 T80T-4000-W install the new spark plug tube seal(s).
GFD34546Courtesy of FORD MOTOR COMPANY
    NOTE: Installation of new seals is only required if damaged seals were removed.

  1. 2.
    Using 205-142 T80T-4000-J and 205-153 T80T-4000-W install the new VCT seal(s).
GFD34547Courtesy of FORD MOTOR COMPANY
    NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use Motorcraft ®Silicone Gasket Remover and Motorcraft ® Metal Surface Prep. Failure to follow this procedure can cause future oil leakage.
    NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

  1. 3.
    Apply an 8 mm (0.315 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover-to-Right Hand (RH) cylinder head joints.
GFD34548Courtesy of FORD MOTOR COMPANY

  1. 4.

    Using a new gasket, install the RH valve cover and tighten the 11 retainers.
    • Tighten in the sequence shown to 10 Nm (89 lb-in).
Fig 1: RH Valve Cover Retainers Tightening Sequence
GFD34549Courtesy of FORD MOTOR CO.

  1. 5.

    Ensure the VCT seals in the valve cover are below the top of the connector (flat portion) on the VCT oil control valve otherwise the interface may leak.
GFD34550Courtesy of FORD MOTOR COMPANY

  1. 6.

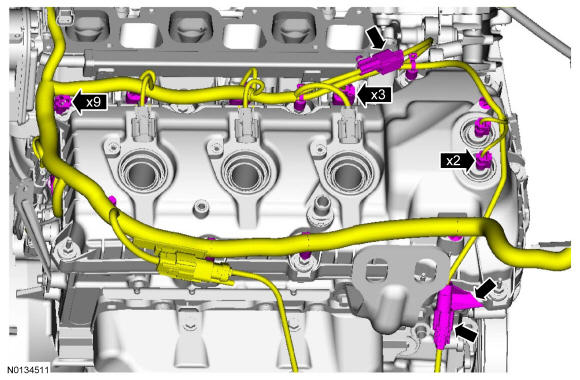

    Install the engine wiring harness to the RH valve cover.
    • Position the wiring harness and attach the 9 wiring harness retainers to the RH valve cover and stud bolts.
    • Connect the CHT sensor wiring harness jumper electrical connector.
    • Connect the 3 fuel injector electrical connectors.
    • Connect and attach the RH CMS electrical connector.
    • Connect the 2 VCT oil control solenoid electrical connectors.
GFD34486Courtesy of FORD MOTOR COMPANY

  1. 7.

    Install the PCV crankcase vent tube.
GFD34485Courtesy of FORD MOTOR COMPANY

  1. 8.

    Install the RH ignition coils. Refer to IGNITION COIL-ON-PLUG -- RH .
