Accelerator Pedal: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

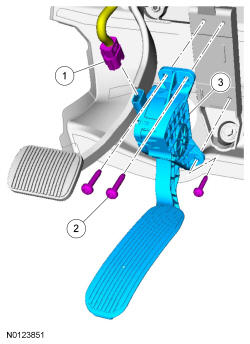

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Accelerator pedal sensor electrical connector (part of 14290) | - | - | - |
| 2 | W714332 | Accelerator pedal and sensor bolt (3 required) | - | - | 7 Nm (62 lb-in) |
| 3 | 9F836 | Accelerator pedal and sensor assembly | - | - | - |
