Removal And Installation: Driveshaft: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

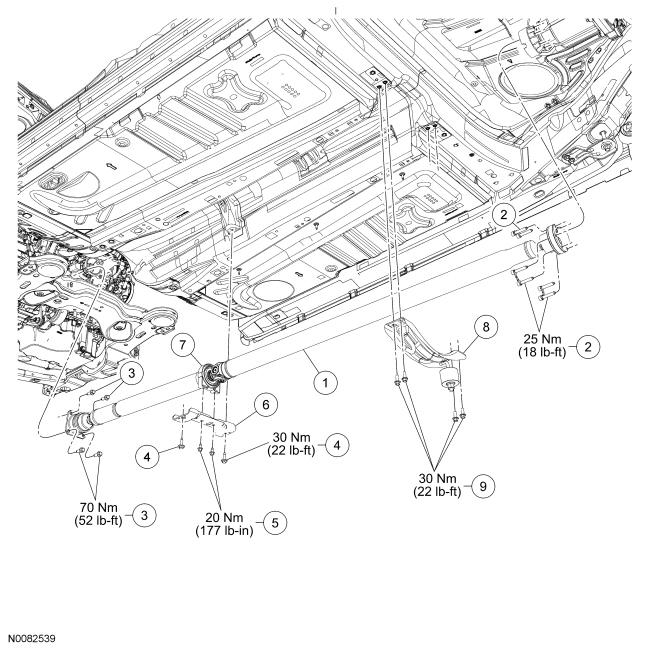

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 4R602 | Driveshaft assembly | - | - | - |
| 2 | W790063 | RDU pinion flange bolt and washer assemblies (3 required) | - | - | 25 Nm (18 lb-ft) |
| 3 | W711918 | PTU flange bolts (4 required) | - | - | 70 Nm (52 lb-ft) |
| 4 | W701834 | Outer center bearing bracket bolts (2 required) | - | - | 30 Nm (22 lb-ft) |
| 5 | W500220 | Inner center bearing bolts (2 required) | - | - | 20 Nm (177 lb-in) |
| 6 | 4B403 | Center bearing bracket | - | - | - |
| 7 | - | Center bearing (part of 4R602) | - | - | - |
| 8 | 5A204 | Exhaust support brace | - | - | - |
| 9 | W701834 | Exhaust support brace bolts (4 required) | - | - | 30 Nm (22 lb-ft) |
