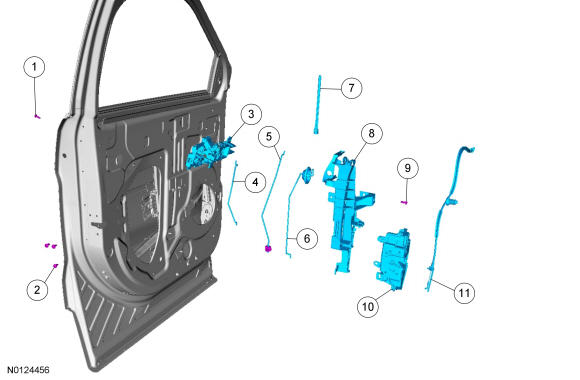

Front Door Handles, Locks and Latches - Exploded View
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Exterior front door handle reinforcement screw (part of 26684 RH 26685 LH) | - | - | 7 Nm (62 lb-in) |
| 2 | W705830 | Front door latch screw (3 required) | - | - | 12 Nm (106 lb-in) |
| 3 | 26684 RH 26685 LH | Exterior front door handle reinforcement | - | - | - |
| 4 | 22135 | Front door lock cylinder actuating rod (if equipped) | - | - | - |
| 5 | 22152 RH 22153 LH | Exterior front door handle actuating rod | - | - | - |
| 6 | 21852 RH 21853 LH | Front door lock actuating rod | - | - | - |
| 7 | 21850 | Front door lock push rod | - | - | - |
| 8 | 43350 RH 43351 LH | Exterior front door handle reinforcement carrier | - | - | - |
| 9 | W506964 | Exterior front door handle reinforcement carrier screw | - | - | - |
| 10 | 21812 RH 21813 LH | Front door latch | - | - | - |
| 11 | 221A00 | Interior front door handle actuating cable | - | - | - |
