Automatic Torque Coupling (ATC) Configuration
- 1.
Using the scan tool, under the toolbox icon select Powertrain then select ATC Barcode Entry. Follow the instructions displayed on the scan tool.
NOTE:
If the ATC bar code information is not correct, RDU damage or driveability concerns can occur.
- 2.

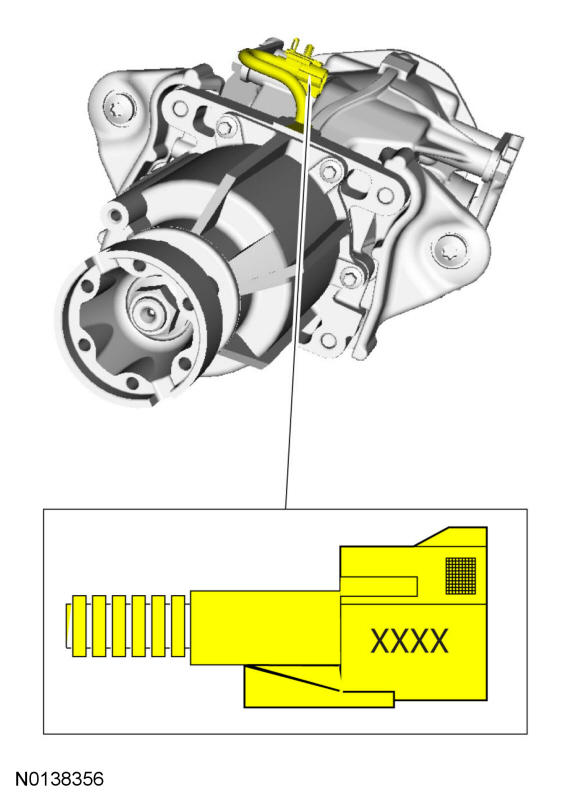

Enter the 4-digit code found on the ATC solenoid wire harness connector. The scan tool verifies the digits entered are valid and displays a message if the information is not valid.
- 3.

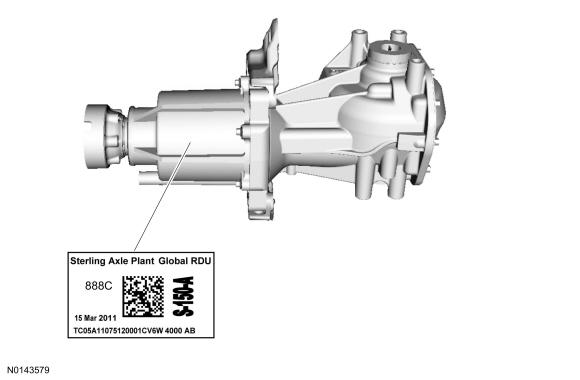

Enter the 4-digit alpha numeric bar code found on the label. The scan tool verifies the digits entered are valid and displays a message if the information is not valid.
- 5.
Road test the vehicle. Carry out the AWD drive cycle after downloading the ATC solenoid bar code information to the PCM. REFER to Four Wheel Drive (4WD) Systems .
