Hood Latch: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

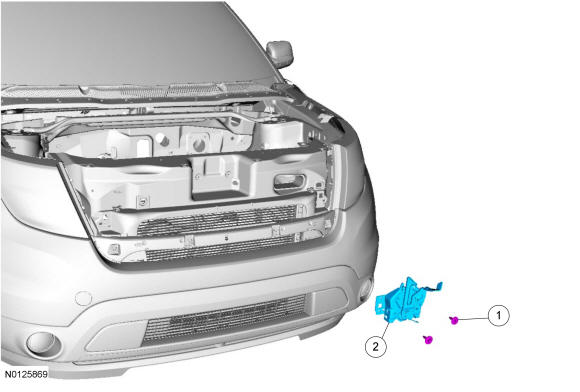

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | N808727 | Hood latch bolt (2 required) | - | - | 11 Nm (97 lb-in) |
| 2 | 16700 | Hood latch | - | - | - |
