Transmission Fluid Cooler Tubes - 2.0L GTDI: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL(S)
| Disconnect Tool TOC Line (1/2") 307-569 |
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC | MERCON® LV |

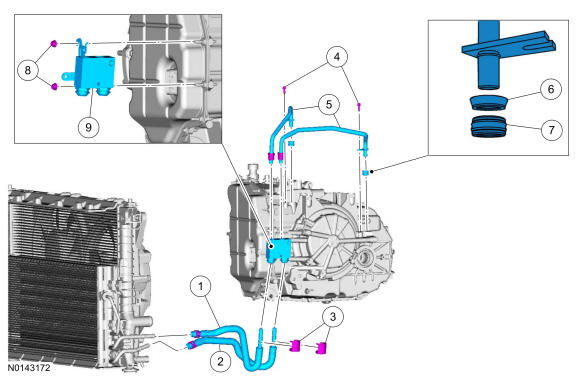

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 7W063 | Transmission fluid cooler inlet hose | - | - | - |
| 2 | 7W064 | Transmission fluid cooler outlet hose | - | - | - |
| 3 | 7J081 | Transmission fluid cooler hose secondary latch (2 required) | - | - | - |
| 4 | W712146 | Transmission mounted transmission fluid cooler tube bolt (2 required) | 10 Nm (89 lb-in) | - | Install new bolts |
| 5 | 7H420 | Transmission mounted transmission fluid cooler tube assembly nuts | 30 Nm (22 lb-ft) | - | - |
| 6 | 7J324 | Backing ring | - | - | - |
| 7 | 7D285 | Seal | - | - | - |
| 8 | W520101 | Transmission fluid thermal bypass valve nuts | 9 Nm (80 lb-in) | - | - |
| 9 | 7H322 | Transmission fluid thermal bypass valve | - | - | - |
