Selector Lever Boot: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

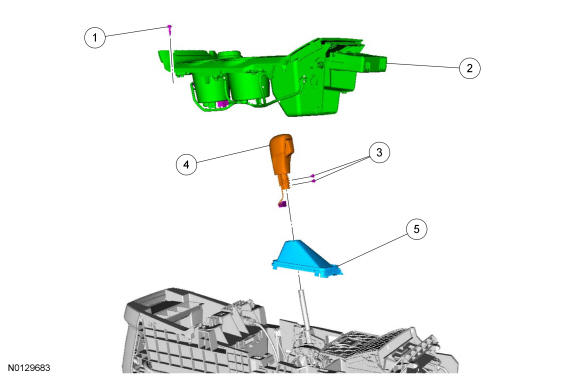

Exploded View
| Item | Service Part Number | Description |
|---|---|---|
| 1 | W707628 | Selector lever trim panel screw |
| 2 | 7D443 | Upper finish panel |
| 3 | W790167 | Selector lever knob screw (2 required) |
| 4 | 7213 | Selector lever knob |
| 5 | 7277 | Selector lever boot |
