Selector Lever Cable - 6F50/6F55: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

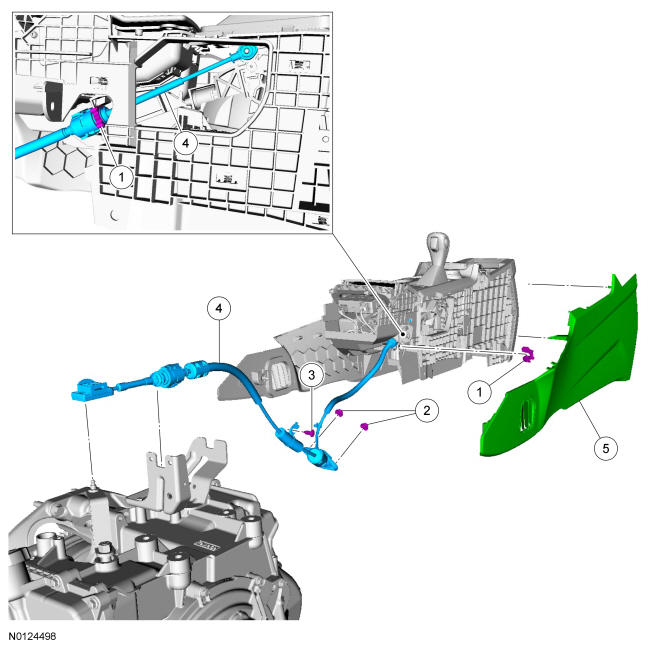

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 7H181 | Selector lever cable retaining clip | - | - | - |
| 2 | W707944 | Selector lever cable grommet nuts | 7 Nm (62 lb-in) | - | - |
| 3 | part of 7E395 | Selector lever cable routing retainer | - | - | - |
| 4 | 7E395 | Selector lever cable | - | - | - |
| 5 | 7804608 | Lower floor console side trim panel | - | - | - |
