Front Park/Turn/Warn LED Assembly: Removal

Left Hand (LH) Front Park/Turn/Warn LED Assembly

1. 1.

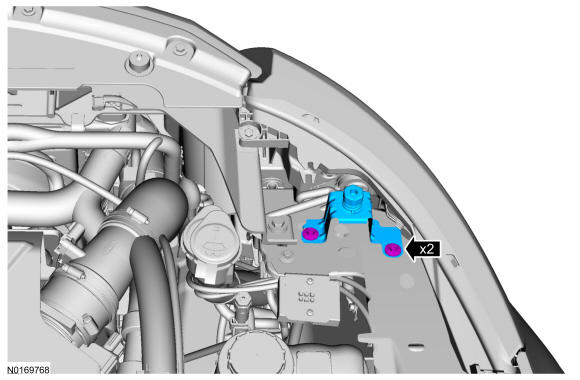

   Remove the bolts and the hood adjuster.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Remove the air cleaner. REFER to Intake Air Distribution and Filtering .

1. 3.

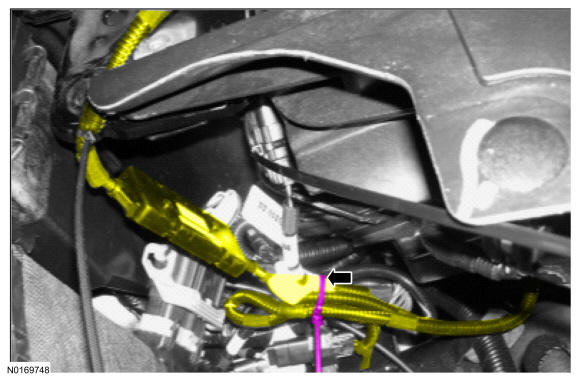

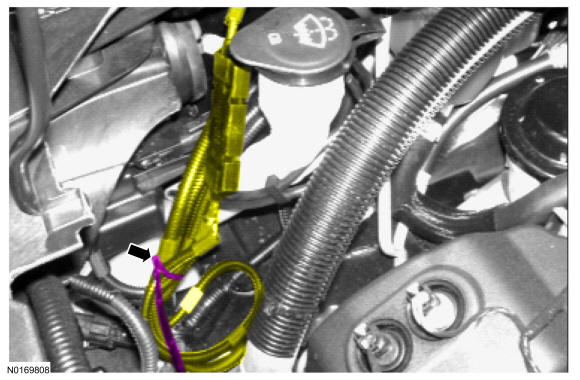

   Remove the wire tie.

Courtesy of FORD MOTOR COMPANY

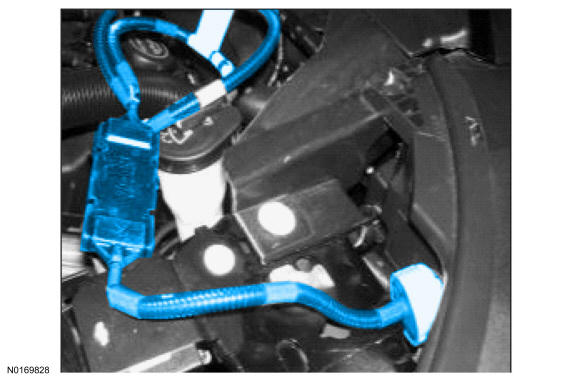

NOTE: The body harness and the LH front park/turn/warn LED assembly are marked with colored tape. Connect white (body) to white (LH front park/turn/warn LED assembly) and the blue (body) to blue (LH front park/turn/warn LED assembly).
1. 4.

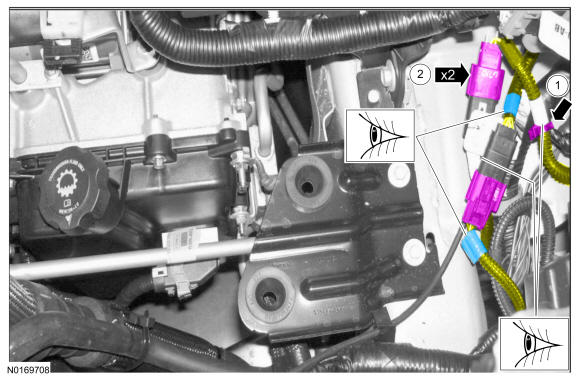

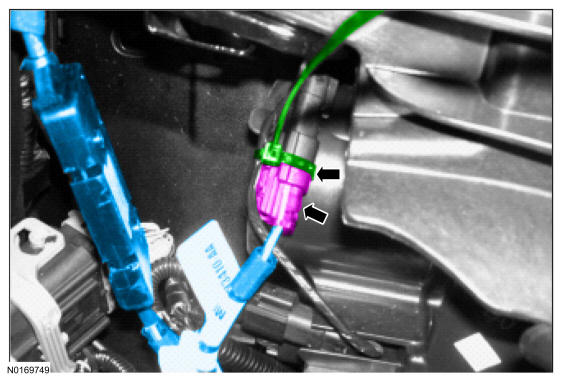

   Disconnect the electrical connectors.

   1. 1.

      Remove the wire tie.

   1. 2.

      Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 5.

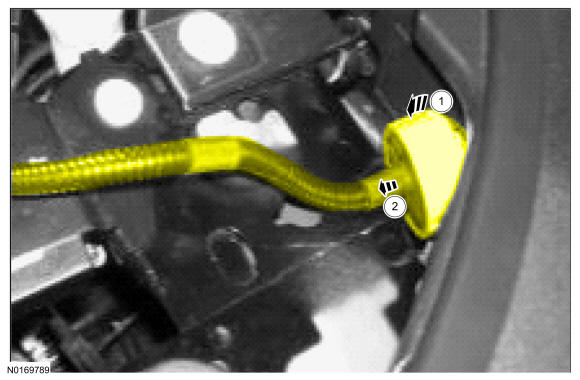

   Remove the LH front park/turn/warn LED bulb from the LH headlamp assembly.
   NOTE: Adjust the harness length prior to installing the wire tie.

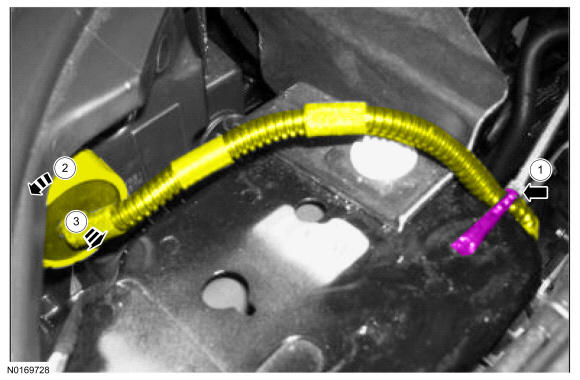

   1. 1.
      Remove the wire tie.

   1. 2.

      Rotate the LH front park/turn/warn LED bulb counter clockwise.

   1. 3.

      Remove the LH front park/turn/warn LED bulb from the headlamp assembly.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Remove the wire tie, disconnect the electrical connector and remove LH front park/turn/warn LED assembly.

Courtesy of FORD MOTOR COMPANY

Right Hand (RH) Front Park/Turn/Warn LED Assembly

1. 7.

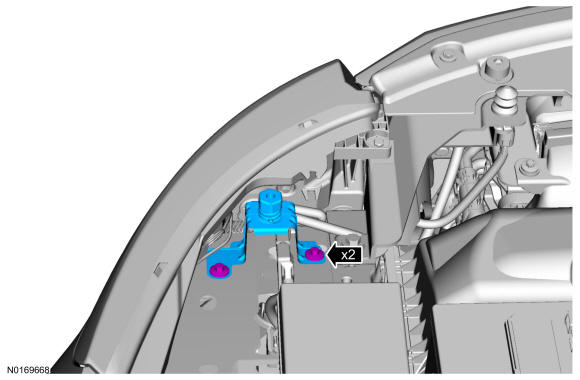

   Remove the bolts and the hood adjuster.

Courtesy of FORD MOTOR COMPANY

1. 8.

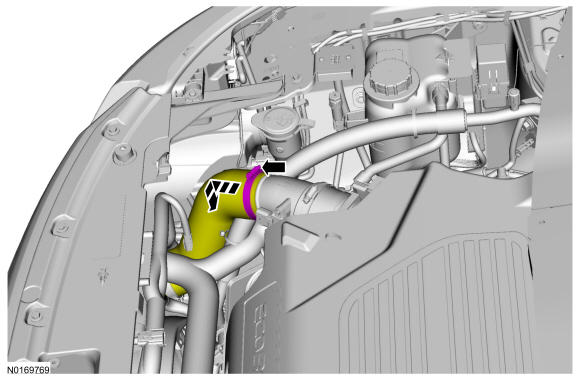

   Loosen the clamp and position the turbocharger outlet hose aside.

Courtesy of FORD MOTOR COMPANY

NOTE: Adjust the harness length prior to installing the wire tie.
1. 9.

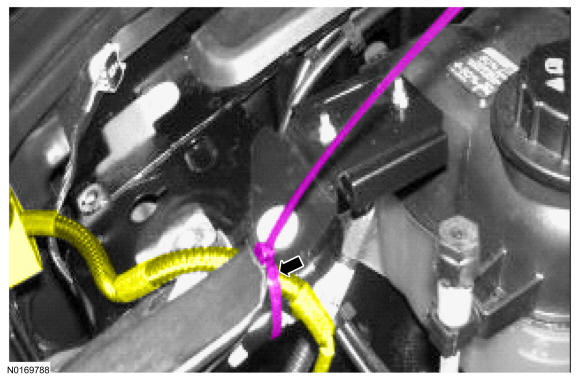

   Remove the wire tie.

Courtesy of FORD MOTOR COMPANY

1. 10.

   Remove the RH front park/turn/warn LED bulb from the RH headlamp assembly.

   1. 1.

      Rotate the RH front park/turn/warn LED bulb counter clockwise.

   1. 2.

      Remove the RH front park/turn/warn LED bulb from the headlamp assembly.

Courtesy of FORD MOTOR COMPANY

1. 11.

   Remove the wire tie, disconnect the electrical connector and remove the RH front park/turn/warn LED assembly.

Courtesy of FORD MOTOR COMPANY

1. 12.

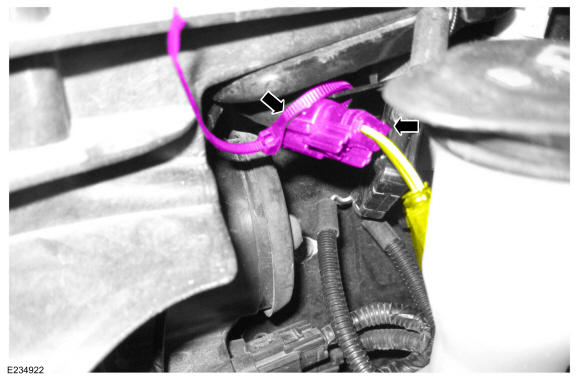

   Remove the wire tie.

Courtesy of FORD MOTOR COMPANY

NOTE: The wiring harness has a white identifier.
1. 13.

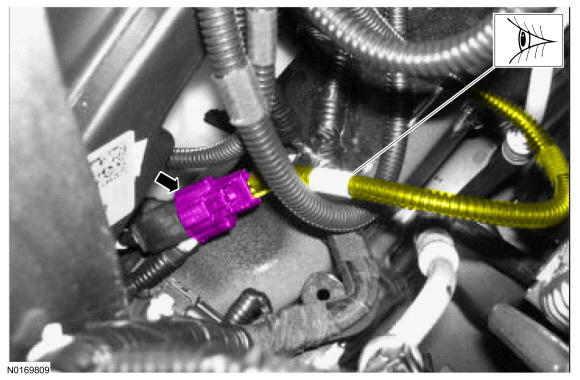

   Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 14.

   Remove the RH front park/turn/warn LED assembly.
