Lighting and Siren Control Module: Removal

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION .

  1. 1.

    • 22 Nm (16 lb-ft)
GFD33628Courtesy of FORD MOTOR COMPANY
    NOTE: Cencom gold shown, all others similar.

  1. 2.
GFD33629Courtesy of FORD MOTOR COMPANY

  1. 3.

GFD33630Courtesy of FORD MOTOR COMPANY

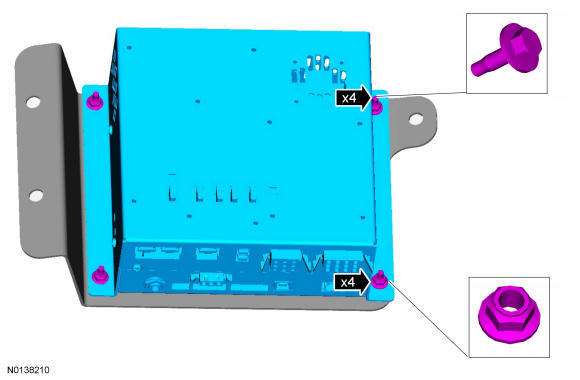

  1. 4.

    • 8 Nm (71 lb-in)
GFD33631Courtesy of FORD MOTOR COMPANY
