Lighting Relay Center: Removal

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION .

  1. 1.

    • 22 Nm (16 lb-ft)
GFD33628Courtesy of FORD MOTOR COMPANY

  1. 2.

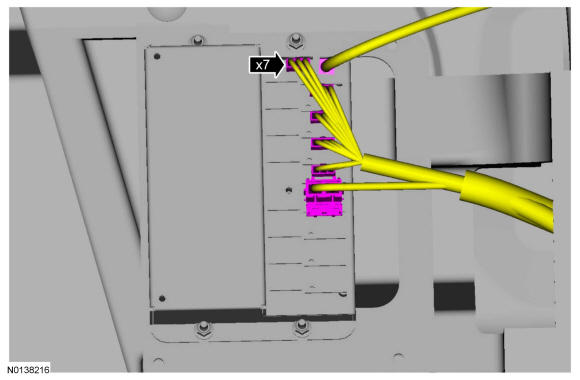

GFD33632Courtesy of FORD MOTOR COMPANY

  1. 3.

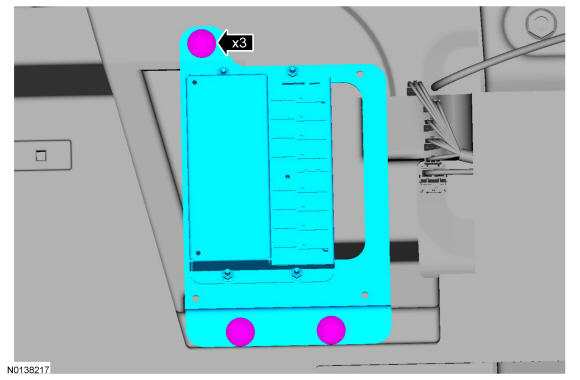

GFD33633Courtesy of FORD MOTOR COMPANY

  1. 4.

    • 8 Nm (71 lb-in)

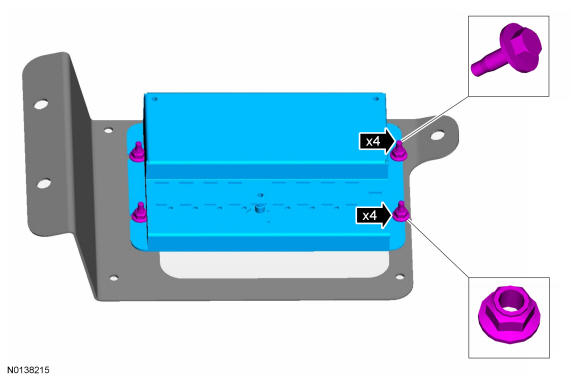

GFD33634Courtesy of FORD MOTOR COMPANY
