WARNING:
Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION
.

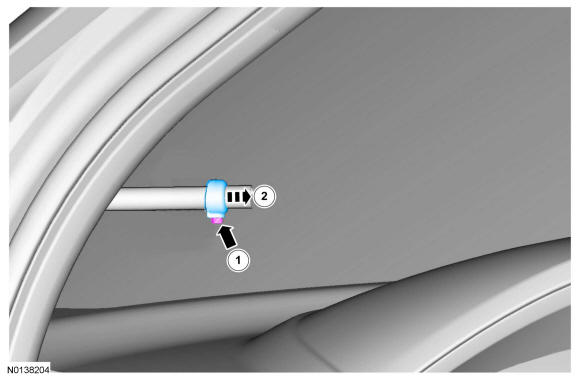

NOTE:
Push the loosened screw to release the wedge nut.
- 1.
 Courtesy of FORD MOTOR COMPANY
|

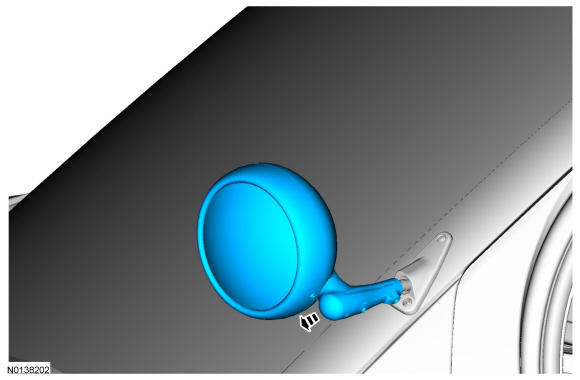

- 2.
 Courtesy of FORD MOTOR COMPANY
|

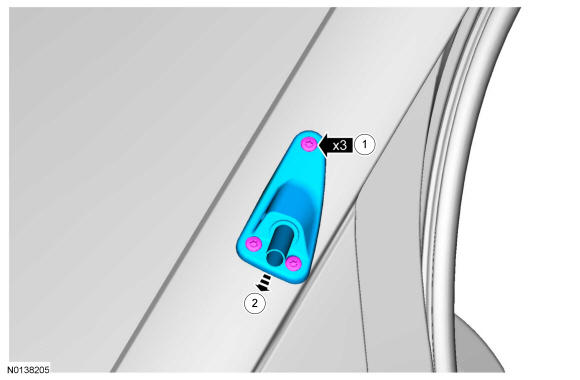

NOTE:
To install, make sure the wedge nut aligns with the keyway on the spotlamp shaft.
- 3.
 Courtesy of FORD MOTOR COMPANY
|

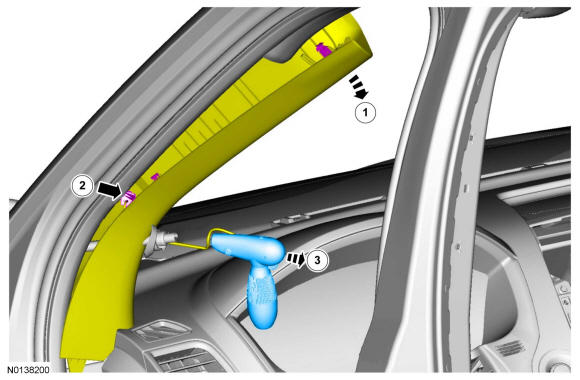

- 4.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
To install, tighten the set screw so there is a slight drag on the spotlamp shaft.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
 Courtesy of FORD MOTOR COMPANY
|
