Cylinder Head: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting .
- 2.
Release the fuel system pressure. REFER to Fuel System General Information .
- 3.
Remove the turbocharger. REFER to TURBOCHARGER .
- 5.
Remove the fuel injectors. REFER to FUEL INJECTORS .
- 6.
Remove the camshafts. Refer to Camshafts .
- 8.

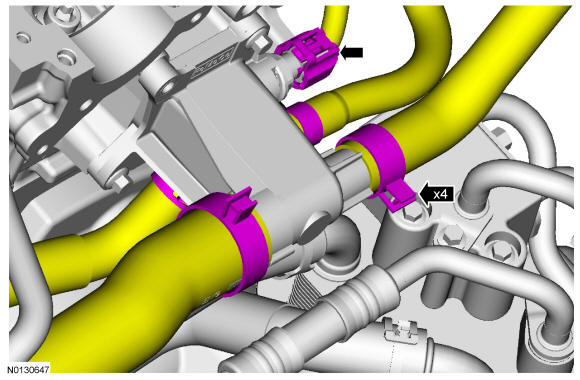

Disconnect the 4 coolant hoses from the coolant outlet.- Disconnect the ECT sensor electrical connector.
- 10.
Remove the 16 valve tappets.
NOTE:
If the camshafts and valve tappets are to be reused, mark the location of the valve tappets to make sure they are assembled in their original positions.
- 11.
Inspect the valve tappets. REFER to Engine System General Information .
NOTE:
The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm (0.144 in).
