Engine Mount: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting
- 4.

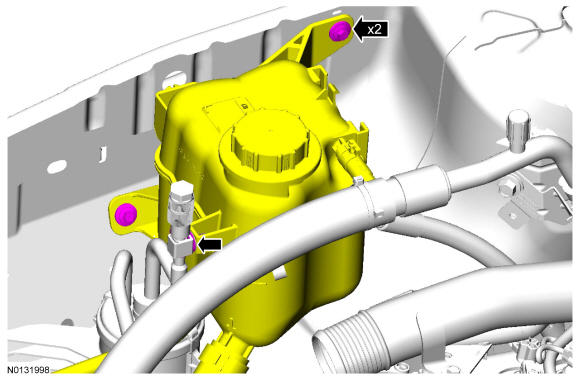

Remove the 2 bolts, the A/C tube retaining clip and position the degas bottle aside.- To install, tighten to 9 Nm (80 lb-in).
- 5.

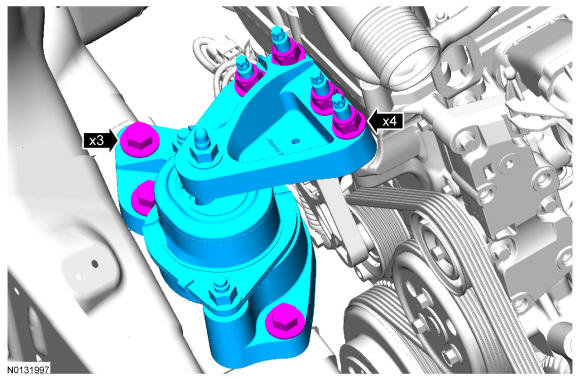

Remove the 4 nuts, the 3 bolts and the engine support insulator.- To install, tighten bolts to 90 Nm (66 lb-ft).
- To install, tighten nuts to 125 Nm (92 lb-ft).
