Engine Oil Pressure (EOP) Switch: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting
- 3.

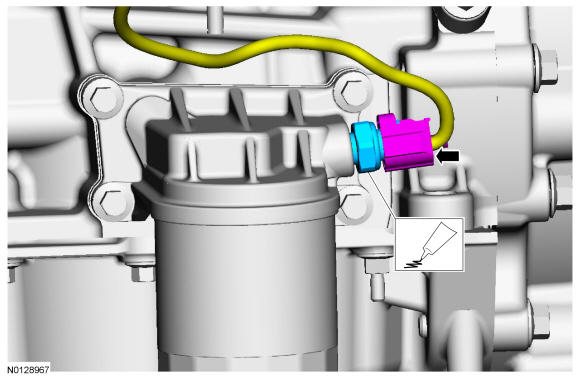

Disconnect the EOP switch electrical connector.- Remove the EOP switch.
- To install, tighten to 15 Nm (133 lb-in).
NOTE:
Apply thread sealant to the EOP switch threads.
