Removal And Installation: Flexplate: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting .
- 2.
Remove the transaxle. REFER to Automatic Transmission 6F35 .
- 3.

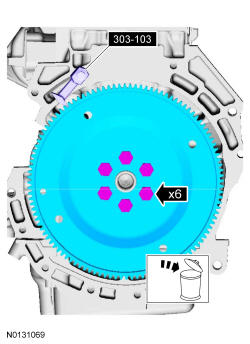

Install 303-103 T74P-6375-A and remove the 6 bolts and the flexplate.- Discard the bolts.
NOTE:
Do not reuse the flexplate bolts.
