Valve Springs: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting .
- 2.
Remove the valve tappets. Refer to Valve Tappets .
- 3.
Remove the spark plugs. REFER to SPARK PLUGS .
- 4.
Connect a compressed air supply to the cylinder that is being serviced.
NOTE:
Use compressed air at 7 bar (101 psi) to 10 bar (145 psi). Do not disconnect the compressed air from the cylinder until the valve spring, valve spring retainer and valve collet is installed. Any loss of air pressure will allow the valve to fall into the cylinder.
- 5.

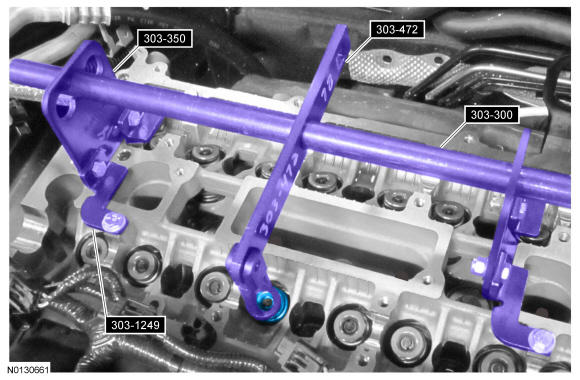

Apply compressed air to the cylinder and remove the valve spring.- Using 303-300 T87C-6565-A, 303-350 T89P-6565-A, 303-472 T94P-6565-AH and 303-1249 compress the valve spring and remove the valve collet, using some multi-purpose grease and a small screwdriver.
- Remove the valve spring retainer and the valve spring.
NOTE:
Place all parts in order to one side.
