Cylinder Head: Assembly
WARNING: This page is about a different variant/trim than selected.
- 1.
Coat the valve stems with clean engine oil and install the valves.
NOTE:
If installing the original valves, make sure the valves are installed in the same position from which they were removed.
- 2.

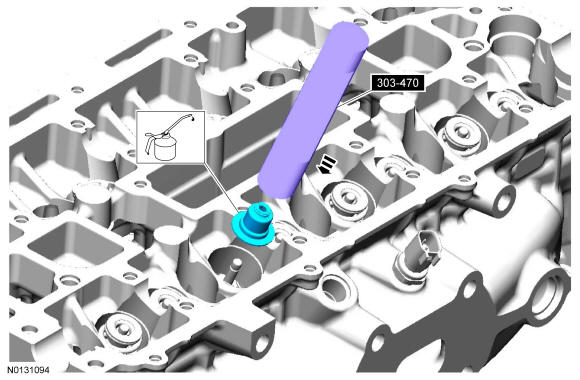

Using the 303-470 T94P-6510-CH, install the valve seal.
NOTE:
Lubricate the valve seal with clean engine oil prior to installing.
- 3.

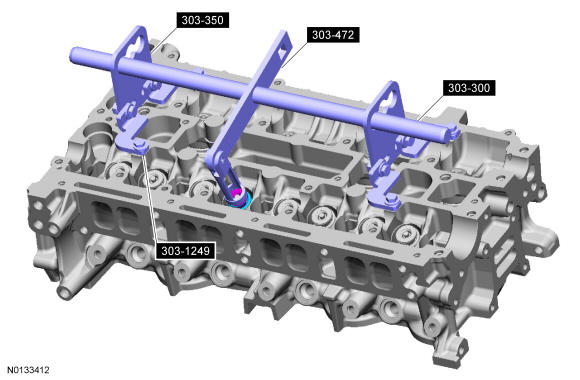

Install the valve spring and the valve spring retainer.- Using the 303-300 T87C-6565-A, the 303-350 T89P-6565-A, the 303-472 T94P-6565-AH and the 303-1249 compress the valve spring and install the valve collet using some grease and a small screwdriver.
NOTE:
Check the seating of the valve collet.
- 7.
Install the LH and RH engine lift eyes and the 2 bolts.- Tighten to 47 Nm (35 lb-ft).
NOTE:
RH shown, LH similar.
