Fuel Injection Pump Tappet Inspection

General Procedure

• 1.

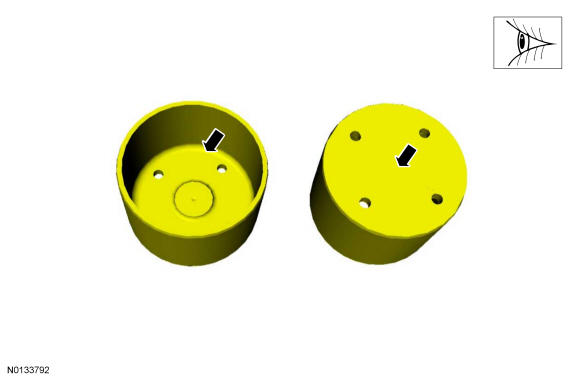

  Inspect the fuel pump tappet for damage, especially in the indicated areas.

Courtesy of FORD MOTOR COMPANY

• 2.

  If any damage is evident, inspect the fuel pump and the fuel injection pump tappet drive lobe for damage. REFER to Engine System - General Information . Install new components as necessary.
