Wiper Mounting Arm and Pivot Shaft: Removal

  1. 1.

    Remove the cowl panel. REFER to Front End Body Panels .

  1. 2.

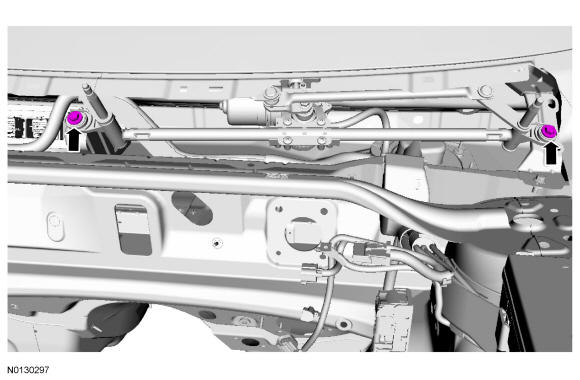

    Remove the 2 wiper mounting arm and wiper pivot shaft bolts.
GFD38148Courtesy of FORD MOTOR COMPANY

  1. 3.

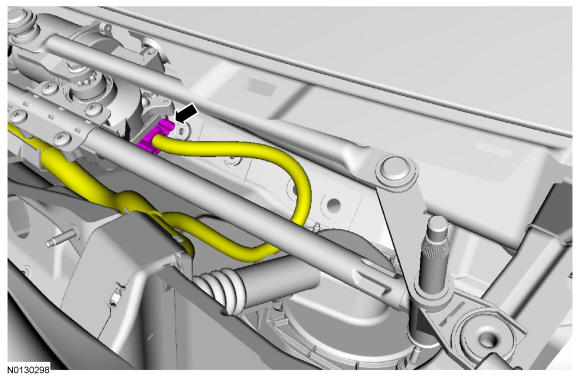

    Disconnect the wiper motor electrical connector.
GFD38149Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove the wiper mounting arm and wiper pivot shaft.
