Heater Core and Evaporator Core Housing: Removal

NOTE: If a heater core leak is suspected, the heater core must be pressure leak tested before it is removed from the vehicle. Refer to Climate Control System  Component Test.

1. 1.

   Remove the instrument panel assembly. REFER to Instrument Panel and Console .

1. 2.

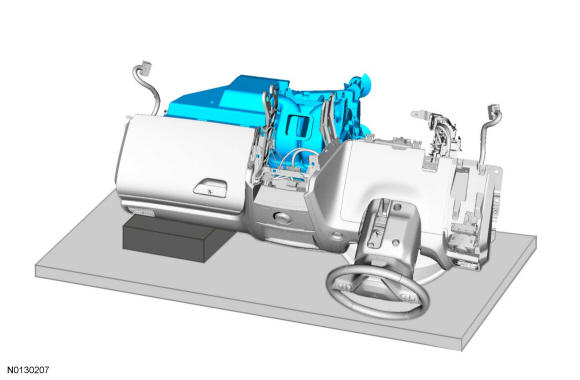

   Position the instrument panel with the passenger side supported as shown in illustration.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Remove the bolts and the RH insulation panel. Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Remove the 2 RFA module nuts and remove the RFA module.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Disconnect the 3 electrical connectors and detach the wire harness pin-type retainer.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Detach the 4 wire harness pin-type retainers and disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Disconnect the 3 electrical connectors, detach the wire harness pin-type retainer and detach the instrument panel wire harness from the heater core and evaporator core housing.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Remove the 2 floor duct screws and remove the floor duct.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Remove the 2 heater core and evaporator core housing retainers.

Courtesy of FORD MOTOR COMPANY

1. 10.

   Remove the 4 heater core and evaporator core housing retainers.

Courtesy of FORD MOTOR COMPANY

1. 11.

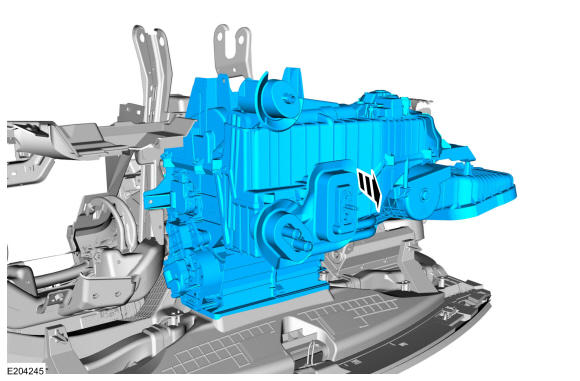

   Remove the heater core and evaporator core housing.

Courtesy of FORD MOTOR COMPANY
