Temperature Blend Door Actuator - RH: Removal

1.

Remove the glove compartment door, REFER to Instrument Panel and Console .

2.

Remove the glove compartment trim panel.

GFD36925

Courtesy of FORD MOTOR COMPANY

3.

Disconnect the glove compartment electrical connector.

GFD36926

Courtesy of FORD MOTOR COMPANY

4.

Remove the 8 screws and remove the glove compartment close out.
- To install, tighten to 3 Nm (27 lb-in).

GFD36927

Courtesy of FORD MOTOR COMPANY

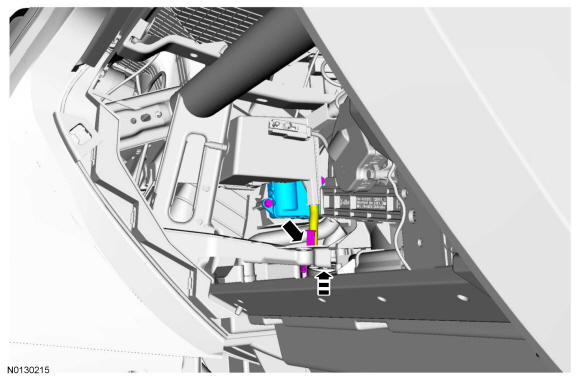

5.

Detach the instrument panel wire harness pin-type retainer from the heater core and evaporator core housing support.

GFD36938

Courtesy of FORD MOTOR COMPANY

6.

Remove the 2 RH temperature blend door actuator screws.

7.

Disconnect the RH temperature blend door actuator electrical connector.

8.

Remove the RH temperature blend door actuator.
