Battery Cables - 2.0L GTDI: Removal

WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS

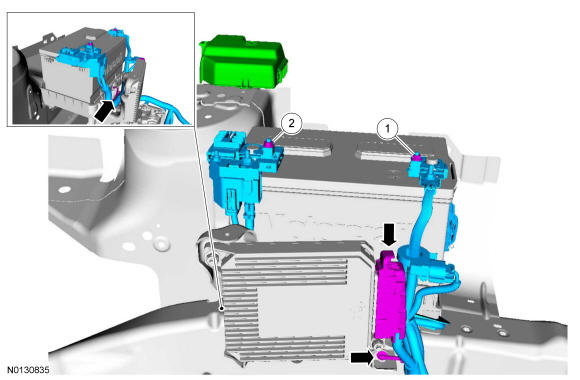

1.

NOTE: Loosen the nut, do not remove.
- 1.

  Torque:
  - 9 Nm (80 lb-in).
- 2.

  Torque:
  - 9 Nm (80 lb-in).

GFD37032

Courtesy of FORD MOTOR COMPANY

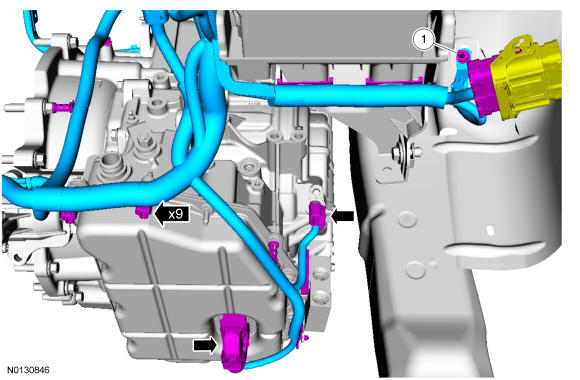

2.
- 1.

  Torque:
  - 12 Nm (106 lb-in).

GFD37033

Courtesy of FORD MOTOR COMPANY

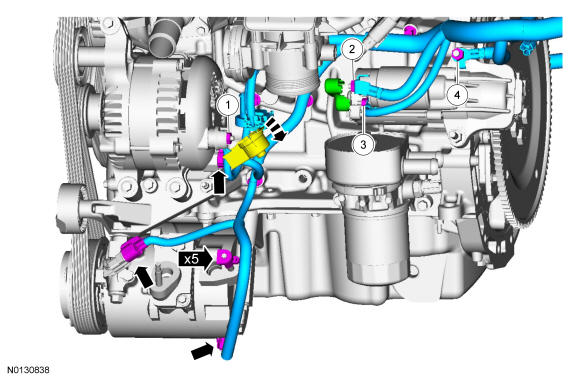

3.
- 1.

  Torque:
  - 17 Nm (150 lb-in).
- 2.

  Torque:
  - 12 Nm (106 lb-in).
- 3.

  Torque:
  - 5 Nm (44 lb-in).
- 4.

  Torque:
  - 17 Nm (150 lb-in).

GFD37034

Courtesy of FORD MOTOR COMPANY

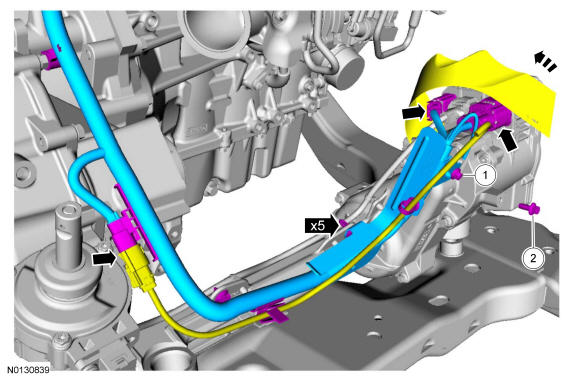

4.
- 1.

  Torque:
  - 10 Nm (89 lb-in).
- 2.

  Torque:
  - 11 Nm (97 lb-in).

GFD37035

Courtesy of FORD MOTOR COMPANY
