Battery Cables - 3.5L GTDI: Removal

WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS

1.

NOTE: Loosen the nut, do not remove.
- 1.

  Torque:
  - 9 Nm (80 lb-in).
- 2.

  Torque:
  - 9 Nm (80 lb-in).
- 3.

  Torque:
  - 9 Nm (80 lb-in).
- 4.

  Torque:
  - 9 Nm (80 lb-in).
- 5.

  Torque:
  - 12 Nm (106 lb-in).

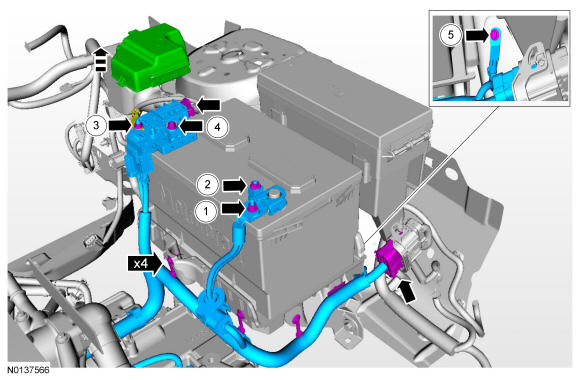

GFD37036

Courtesy of FORD MOTOR COMPANY

2.
- 1.

  Torque:
  - 8 Nm (71 lb-in).
- 2.

  Torque:
  - 17 Nm (150 lb-in).

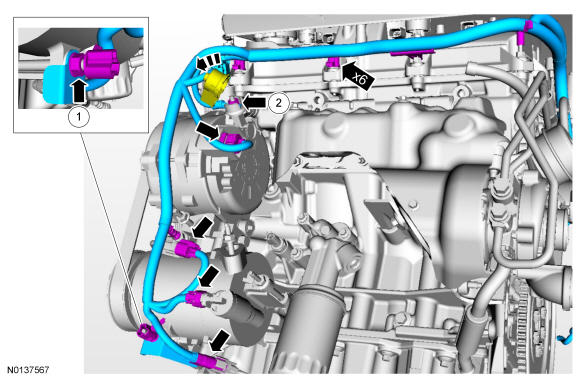

GFD37037

Courtesy of FORD MOTOR COMPANY

3.
- 1.

  Torque:
  - 12 Nm (106 lb-in).
- 2.

  Torque:
  - 5 Nm (44 lb-in).
- 3.

  Torque:
  - 15 Nm (133 lb-in).

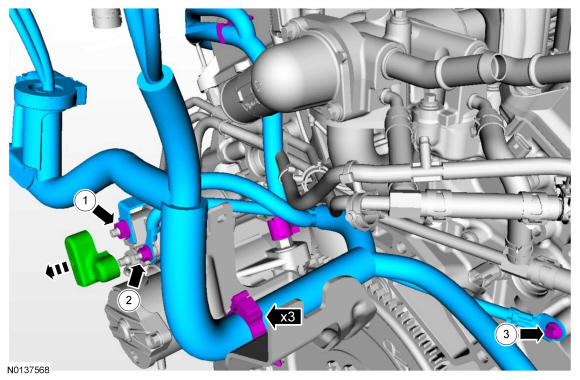

GFD37038

Courtesy of FORD MOTOR COMPANY

4.
- 1.

  Torque:
  - 10 Nm (89 lb-in).

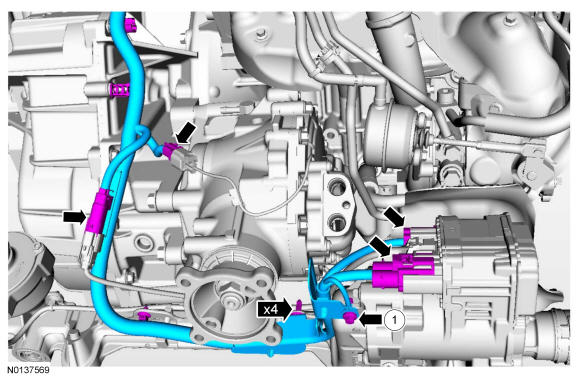

GFD37039

Courtesy of FORD MOTOR COMPANY
