Battery Current Sensor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

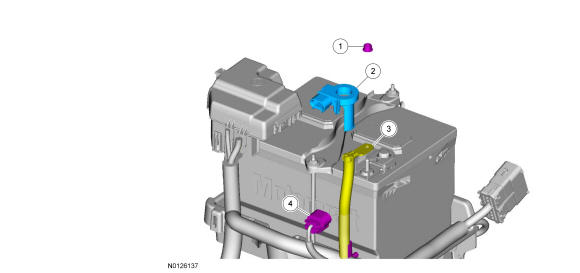

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Battery cable terminal nut (part of 14300) | 9 Nm (80 lb-in) | - | - |
| 2 | 14B357 | Battery current sensor | - | - | - |
| 3 | - | Negative battery cable terminal (part of 14300) | - | - | - |
| 4 | - | Battery current sensor electrical terminal (part of 14300) | - | - | - |
