Generator Current Sensor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

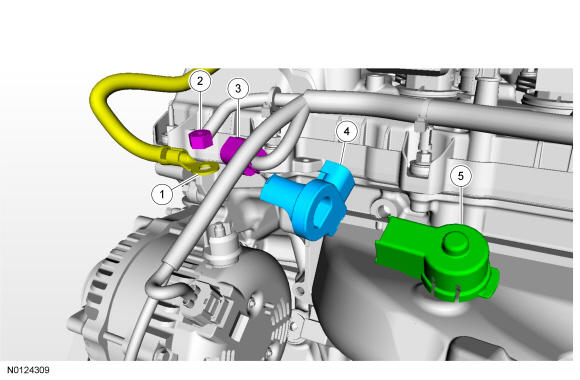

Exploded View
NOTE:
3.5L Ti-VCT shown in illustration, other engines similar.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Generator B+ terminal (part of 14300) | - | - | - |
| 2 | W711953 | Generator B+ terminal nut | 17 Nm (150 lb-in) | - | - |
| 3 | - | Generator current sensor electrical connector (part of 14300) | - | - | - |
| 4 | 14B357 | Generator current sensor | - | - | - |
| 5 | - | Generator B+ terminal cover (part of 14300) | - | - | - |
