Wheel and Tire: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 | - |

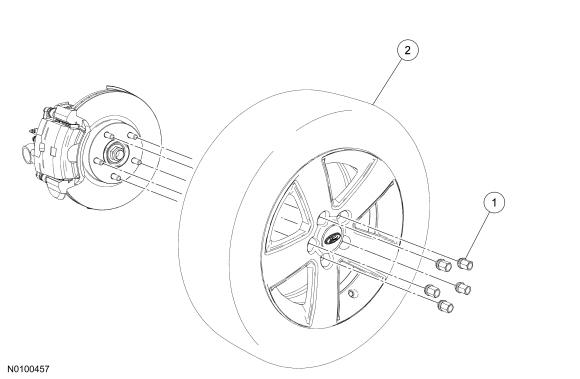

Exploded View
NOTE:
Typical 5 lug wheel shown in illustration.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 1012 | Wheel nut (5 required) (All Except Police Vehicles) | 135 Nm (100 lb-ft) | - | - |
| 1 | 1012 | Wheel nut (5 required) (Police Vehicles) | 149 Nm (110 lb-ft) | - | - |
| 2 | - | Wheel and tire assembly | - | - | - |
