Evaporative Emission (EVAP) Canister Purge Valve - 2.0L GTDI: Removal
WARNING:
Before beginning any service procedure in this service information, refer to ENGINE CONTROLS - SYMPTOM CHARTS (EXCEPT DIESEL & HYBRID)
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
- 1.

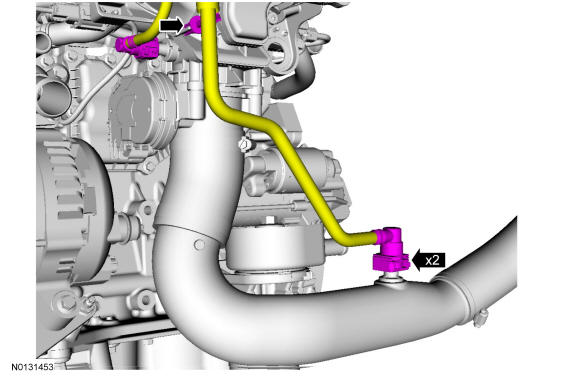

Detach the hose retainer and disconnect the 2 vapor tube quick connect couplings. REFER to Fuel System - General Information , Disconnect - Type 1 or REFER to Fuel System - General Information , Disconnect - Type 2 or REFER to Fuel System - General Information , Disconnect - Type 5.
- 2.

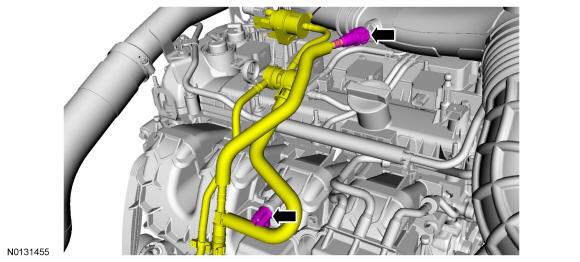

Detach the hose retainer and disconnect the vapor tube quick connect coupling. REFER to Fuel System - General Information , Disconnect - Type 1 or REFER to Fuel System - General Information , Disconnect - Type 2 or REFER to Fuel System - General Information , Disconnect - Type 5.
- 3.

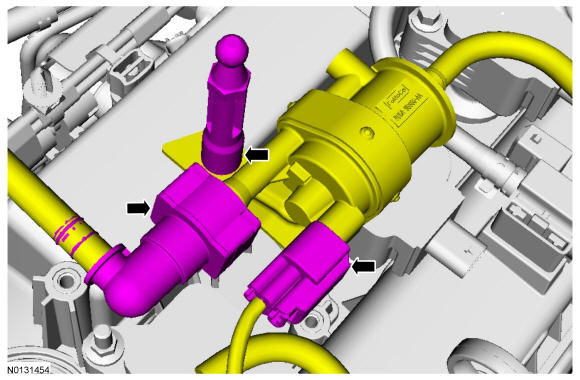

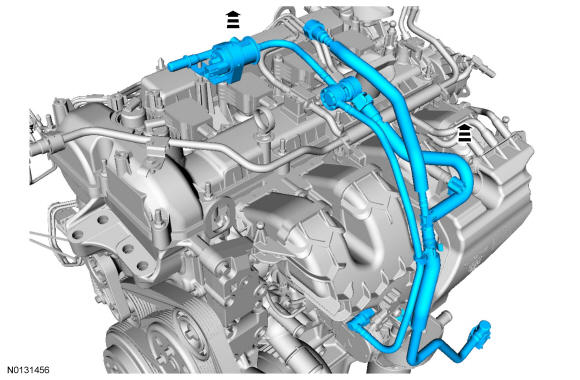

Disconnect the purge valve electrical connector and the vapor quick connect coupling and remove fastener. REFER to Fuel System - General Information , Disconnect - Type 1 or REFER to Fuel System - General Information , Disconnect - Type 2 or REFER to Fuel System - General Information , Disconnect - Type 5.- 1.
To install, tighten to 5 Nm (44 lb-in).
- 1.
